The Turtle Tiny House

Designed for those that need just a little more space, the Turtle tiny house contains flexible living areas to meet the demands of modern life – it features a first floor study that can be transformed into a bedroom.

  • First floor bedroom that can transform into a study with a Murphy bed
  • Functional kitchen with a cooktop, mid-size fridge & a countertop oven
  • Additional sleeping space in the loft with an integrated ladder

Full Plans $249 $149

Add to Cart

Framing Plans $147

Add to Cart

Overview
The Turtle house is a tiny house designed for accessibility and storage. At 230 square feet this is a not-so-tiny tiny house, which is suited to those who need just a little bit more space. This home is the result of a collaborative effort between Humble Homes and Karen Batchelor of Living Large with Less. Together we set out to create a tiny house that would be more fitting for an older person.

Living Room
The entrance to the living area is flanked by two floor-to-ceiling closets which can be used for the storage of larger house hold items, as well as smaller personal belongings like books. The living room is naturally lit and ventilated by four windows (five if you include the door) and has space enough for two cosy armchairs, a fold-away table, and a stainless steel fireplace.

Bedroom/Study
The bedroom/study contains a folding Murphy bed with two sliding windows to provide more than adequate lighting. The bedroom also has two large floor-to-ceiling closets for all your clothing/storage needs. The ceiling has been left open, exposing the loft joists and helping to give the space some warmth and character.

Kitchen
This tiny house features a functional kitchen with lots of storage, appliances, and features such as a large Belfast ceramic sink, 10 Cu Ft fridge-freezer, 2-burner induction hob, a counter-top smart oven and a combo washer/dryer. The kitchen also has extensive storage with numerous wall and the floor cabinets.

Bathroom
The bathroom is accessed through a bi-fold door at the end of the kitchen. At a width of 3 feet, the bathroom has enough space for a toilet (be it a standard, compost, or incinerating toilet), and a 3-square-foot shower. There is also space to install a small sink if it’s required.

Sleeping/Storage Loft
The loft can be used as an extra sleeping space or for storage. It can be accessed by a set of ladders which are integrated into the loft joists. The loft has a large skylight window to provide natural daylighting and a means of egress. At the opposite end of the home you will find a storage area over the bathroom which can be used to house plumbing equipment or other items.

Trailer
This tiny house can be built on a 7′ x 24′ utility trailer.

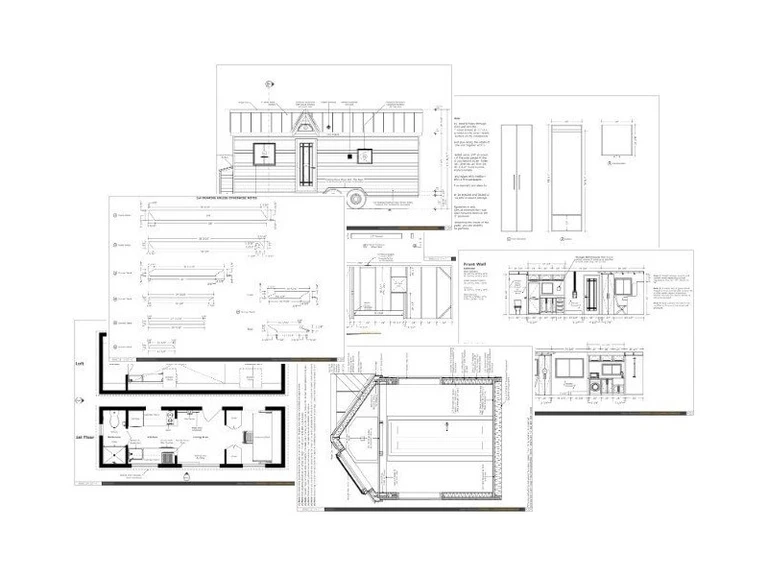

Full Plans

  • Details for permanent foundations and trailers
  • Annotated exterior elevations
  • General floor plans & construction floor plans
  • Electrical schematic
  • Plumbing schematic
  • Construction framing plans
  • Partition construction details
  • Kicker box construction details
  • Timber cut details
  • Custom cabinetry overview
  • Transverse cross-sections
  • Nailing schedule
  • Components page with details of fixtures, fittings & appliances
  • Construction notes, hints and tips
  • Residential license to build one house

Framing Plan Set

  • Details for permanent foundations and trailers
  • Construction framing plans
  • Kicker box construction details
  • Timber cut details
  • Transverse cross-sections
  • Nailing schedule
  • Construction notes, hints and tips
  • Residential license to build one house

For more information about our plans check out our Tiny House Plans – What’s Included? page.

AreaDimensionsAreaDimensions
Footprint7′-8″ x 24′House Height11′-2″
Living Area7′ x 6′-2″Kitchen7′ x 7′-6″
Bathroom3′ x 7′Ceiling Height – Bedroom7′
Loft Height2′-7″Bedroom7′ x 7′-3″
Width @ Eaves8′-4″Total Area230 sq ft

Good To Know

  • All our tiny houses are designed & checked by a structural engineer
  • Our plans are among the highest quality available, at discounted prices
  • You can either download your plans instantly or order a printed set
  • Plans are designed for the self-builder with lots of helpful drawings & info
  • Free updates that contain additional options, schematics & add-ons
  • Free support – because we care about your home as much as you do!

Specifications

WALLS & ROOF

All our tiny houses are built using advanced stick-frame construction techniques. A variety of different types of insulation can be installed, from sheep’s wool to expanded polystyrene. We also recommend the use of internal vapour barriers.

EXTERNAL CLADDING

How you clad your tiny house is up to you, but we recommend sustainably harvested timber that’s been approved by the Forest Stewardship Council (FSC). Other cladding options include lightweight steel panels, and vinyl siding.

DOORS & WINDOWS

Our tiny houses are designed , and to meet the needs of many. That’s why we specify windows from Jeld Wen, an international company that specialises in the construction of quality doors and windows for a wide range of budgets.

HEATING & VENTILATION

There are many options for heating a tiny house. Some which have been installed in our tiny houses include the Morso 1440 wood burning stove, the Newport P-9000 stainless steel fireplace, and the Envi wall-panel heater.

PLUMBING

Plumbing systems for a tiny house can be as complicated or simply as needed. Black and grey water tanks can be installed to create an RV-like system, while others prefer composting toilets to minimise their environmental impact.

POWER

A tiny house can be hooked up to the main grid, or you can decide to go off-grid and use solar panels to provide for your electrical needs. Some of our tiny house plans include PV-system schematics to help you along your way.

FIXTURES & FITTINGS

Our tiny houses are designed with standard-sized components in mind to minimise the amount of work, and cost to create your dream tiny home. All the main components (like the kitchen stove and sink) are specified in the plans.

FINISHES

We typically specify a painted drywall finish for the interior of our homes, but there’s nothing to stop you from installing timber cladding (a popular finish among tiny houses) or even tiles in your kitchen or bathroom.

Tiny House Benefits

  • Save money: the average tiny house costs just $23,000 to build. That’s 92% less than your average house – a saving of $249,000 before interest.
  • Live a green lifestyle with a tiny carbon footprint. Less materials are required for construction, and less energy is needed to power your home.
  • A tiny house on wheels gives you more freedom. Live how you want, where you want, when you want. See the world from your living room.
  • Less stuff, more life. A tiny house allows you to remove the unnecessary clutter from your life, and focus on what really matters.

Printed Plans

Downloadable plans not for you? You can purchase a set of printed plans below – delivery is free! For more information about printed plans check out our Printed Tiny House Plans page.
