Home > Tiny House Plans > The Rooke Tiny House Plans
216 sq/ft
Loft Bed
1 Bath
Trailer / Foundation
216 sq/ft
Loft Bed
1 Bath
Trailer/Foundation

DESCRIPTION

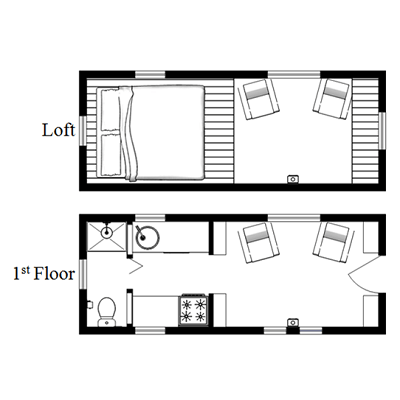

FLOOR PLANS

FULL SPEC

Exterior Details
Footprint 7'-8" x 20'
Total Area 216 sq ft
House Height (exc trailer) 11'-8"
Interior Details
Living Area 7' x 9'-7"
Bathroom 7' x 2'-8"
Loft 7' x 9'-9"
Kitchen 7' x 11'
Ceiling Height - Kitchen 6'-9"
Ceiling Height - Loft 3'-3"
Self-Build Cost
$21,500

WHAT’S INCLUDED IN THIS PLAN SET

Example Plan Set
Cover Page & EULA
  • Full-color exterior rendering of the tiny house
  • Full copy of the End User License Agreement
Foundation Details
  • Construction details for fastening and building the house on a trailer
  • Construction details for a permanent, footing and block wall foundation
Exterior Elevations & Roof Plan
  • Annotated elevation drawings for the front, back, left and right
  • Annotated roof plan with pitch
Floor Plans
  • Construction floor plan, detailing door and window locations
  • Architectural floor plan, detailing rooms and features
Electrical & Water Schematic
  • Suggested location of electrical outlets and fixtures
  • Suggested pipe runs for fresh, grey and black water
Framing Plans
  • Detailed construction plans for the floor, wall and roof framing
  • Detailed construction plans for internal partition walls
  • Detailed construction plans for any ancillary framing
Cabinetry Construction
  • Construction details for any custom cabinetry
Building Section
  • Annotated building section details of flloor, walls and roof
  • Generic exterior wall and roof details
Components
  • Details of any house-specific furniture, fittings and fixtures

The Rooke Tiny House Plans

Select Plan Type
What's included?

Got a Question?

Need to know more and can’t find the answer? Send us a message!
